Controller Deployment & Health

Overview

The Controller runs as a Docker Compose project. Run the commands on this page from the deployment directory (the one with docker-compose.yml and .env). For a high-availability install, add -f docker-compose.ha.yml to each docker compose command.

The API also starts containers of its own through the Docker socket: one jumpbox container per web-terminal user, and one container per installed plugin.

Checking Health

Start with these checks whenever users report that the Controller is slow, down or behaving oddly.

From the command line

docker compose ps                              # every service should be "running" / "healthy"
curl -k https://localhost:3000/health          # {"status":"ok","version":"..."}
curl -k https://localhost:3000/ready           # status plus database and valkey checks

/health and /ready need no sign-in, so you can also use them from a load balancer or monitoring system.

From the admin console

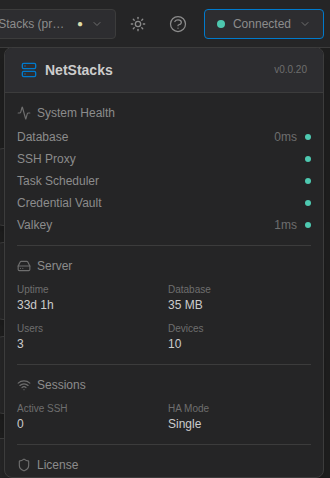

The status pill in the top-right corner of the admin console shows Connected or Disconnected and checks the Controller every 15 seconds. Click it for System Health, server, session and license details.

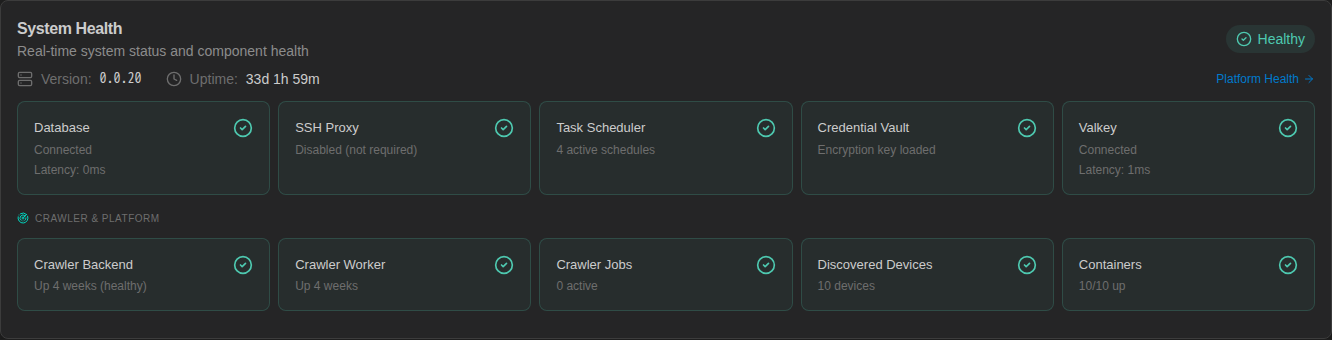

The Dashboard has a System Health panel with the same components and the crawler and container status.

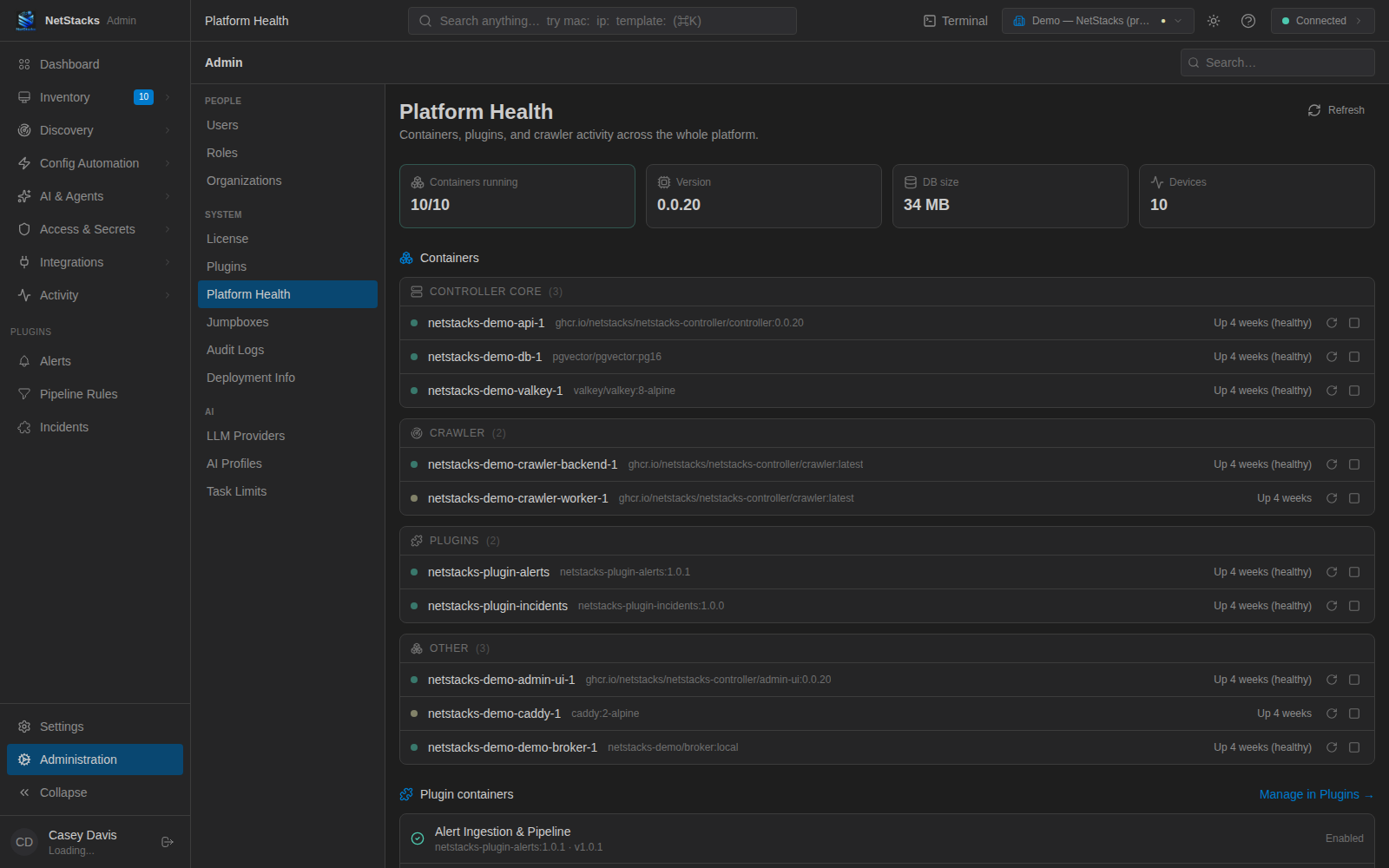

For container-level detail, open Administration → Platform Health. It lists every container of the deployment (Controller core, crawler, plugins) with its status, and has restart, stop and start buttons for each one. You need the system.manage permission to use the buttons.

Reading Logs

docker compose logs -f api admin-ui     # follow the API and web front end
docker compose logs --since 30m api      # last 30 minutes of the API
docker compose logs db                   # bundled PostgreSQL
docker compose logs valkey
docker compose logs crawler-backend crawler-worker

The API log level comes from RUST_LOG in .env (the installer sets info). For more detail, set RUST_LOG=debug and run docker compose up -d api. Set it back afterwards; debug logs are large.

In the admin console, Activity → Audit Log records sign-ins, session takeovers, backups and other admin actions, which helps when tracking down who changed what.

Installer Errors

The API Container Will Not Start

Run docker compose logs api and look at the last lines. Common causes:

• Missing secrets. Compose refuses to start with messages such as Set VAULT_MASTER_KEY in .env (openssl rand -hex 32). VAULT_MASTER_KEY, JWT_SECRET and SERVICE_TOKEN_SECRET must all be set in .env.
• Wrong vault key. VAULT_MASTER_KEY is 64 hex characters and must never change once credentials are stored. If it was changed or lost, stored secrets cannot be decrypted. Restore the original .env.
• Database connection. For an external PostgreSQL, check DATABASE_URL, that the server is reachable from the Docker host, and that the pgvector extension is available. The database user also needs CREATEROLE (or superuser) to set up the discovery schema; without it the Controller starts but discovery is disabled.

Upgrades and Rollback

Upgrades pull new images and restart; database migrations run when the API starts. upgrade.sh also takes a database dump first:

./upgrade.sh             # newest release
./upgrade.sh 0.0.20      # a specific version
# or, by hand:
docker compose pull && docker compose up -d

upgrade.sh keeps the last five dumps in backups/netstacks_v<version>_<timestamp>.sql.gz and waits up to two minutes for /health. If the new version does not come up, roll back:

1. Set NETSTACKS_VERSION in .env back to the previous version.
2. Run docker compose pull && docker compose up -d.
3. If the database must be restored as well (bundled database):

   gunzip -c backups/netstacks_v<version>_<timestamp>.sql.gz \
     | docker exec -i <db-container> psql -U netstacks netstacks

Backups and the Vault Master Key

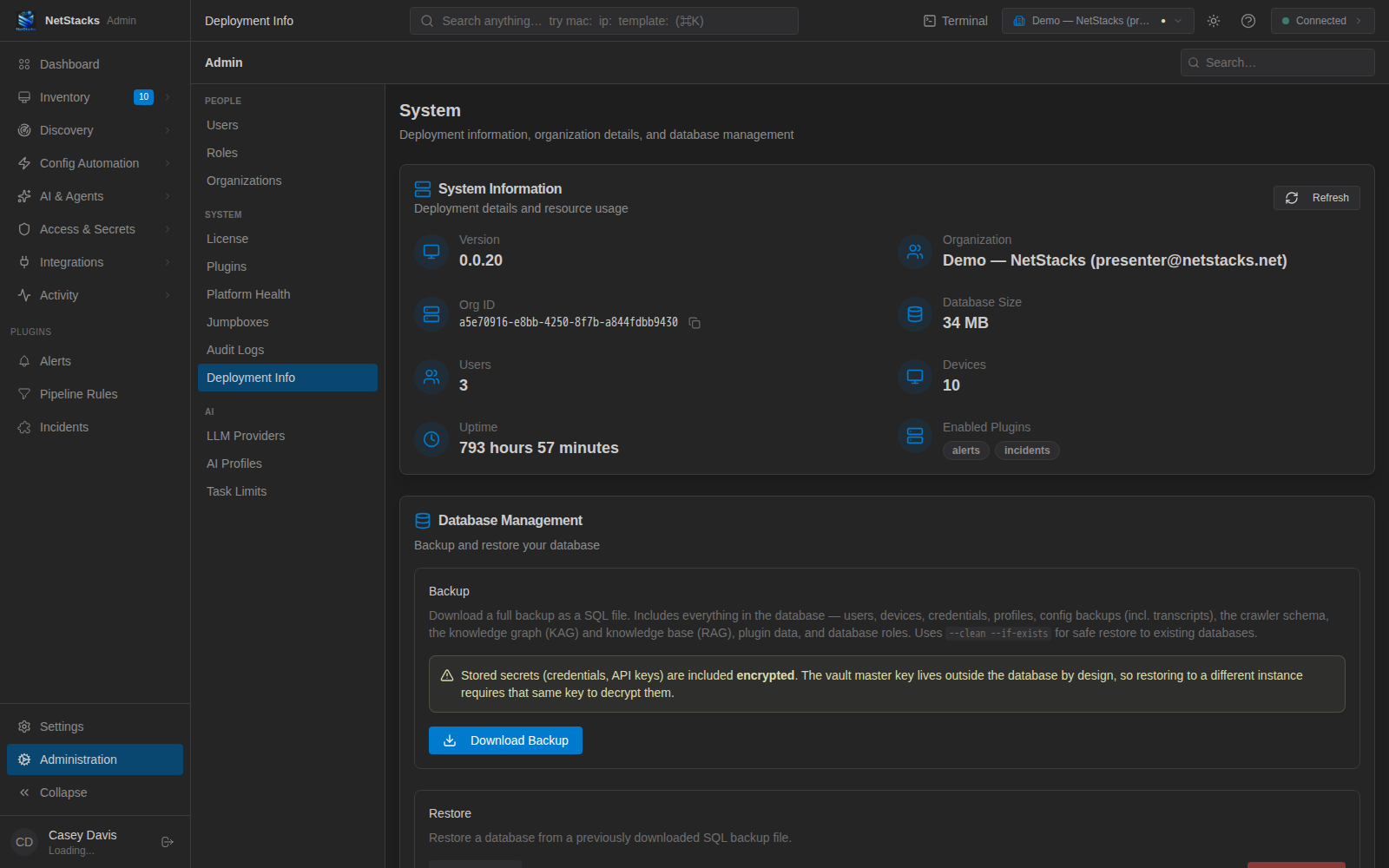

Administration → Deployment Info → Download Backup saves a full SQL backup of the database. Stored secrets are in the backup in encrypted form.

Backups are not scheduled automatically. Download one before upgrades and on a regular basis.

Web Terminal Local Shell (Jumpbox) Problems

In enterprise mode, a new Local Shell tab opens a shell in a per-user Docker container on the Controller (the terminal prints Starting jumpbox container...). If it never starts:

• The api container needs the Docker socket and the Docker group. Check that DOCKER_GID in .env matches the socket's group: stat -c '%g' /var/run/docker.sock, then run docker compose up -d api.
• The jumpbox image must be pullable from the Controller host. Check the image and registry credentials in Settings → Jumpboxes.
• Administration → Jumpboxes lists each user's container with Stop, Restart, Start and Remove actions. Removing a broken container lets the next Local Shell create a fresh one.

Session Sharing Links

• Session sharing needs Valkey. Without it the Controller answers Session sharing requires Valkey. The bundled compose file includes the valkey service; check it is running.
• Share links are built from the Advertise Address in Settings → HA / Clustering. Set it to the URL users reach the Controller on (for example https://controller.example.com:3000) and restart the api container. Otherwise links point at an address viewers cannot open.

License Activation

Administration → License → Activate License contacts the NetStacks license server at www.netstacks.net, so the Controller needs outbound HTTPS access to it. The Controller also re-validates the license every 24 hours. If validation fails, the status changes to Grace Period and the License page shows a banner. Restore outbound access before the grace period runs out.

Only Team and Enterprise license keys can be activated on a Controller. For license questions, contact us.
